Diesel

IDI Diesel engines cylinder head requirements differ some what from gasoline engines. But with low rpm Direct Injection (DI) Diesels swirl comes a much more important factor than any other type of engine. Swirl should not be sacrificed for flow volume and quality of flow makes or breaks combination.
If gasoline or InDirect Injection (IDI) head development is hard because of flow speed and cfm decisions, DI head raises complexity even more by bringing swirl ratio variable which is really hard to measure effectively or to understand what ratio is required for each type of engine and RPM.

Below pictures and dyno graphs from successful cylinder heads.

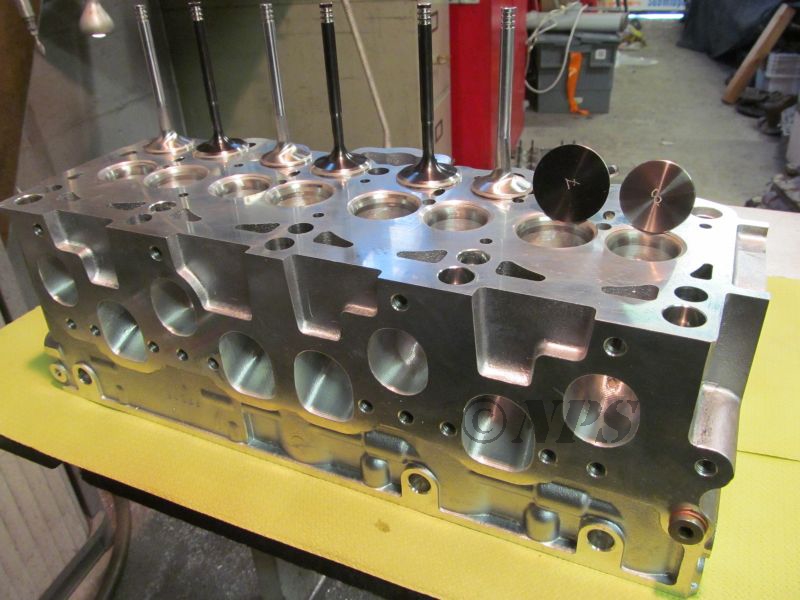

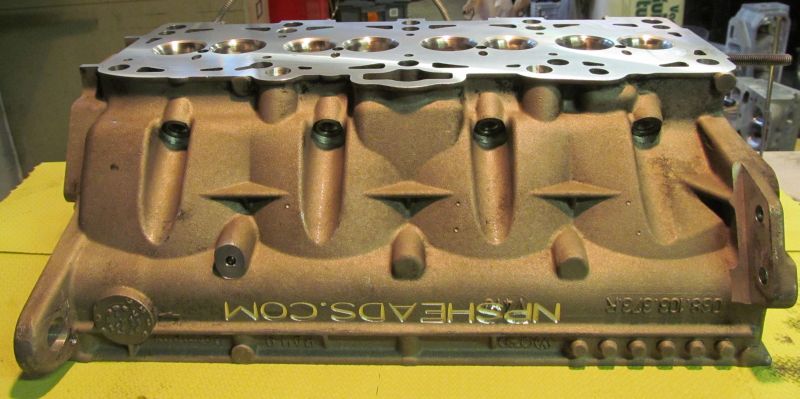

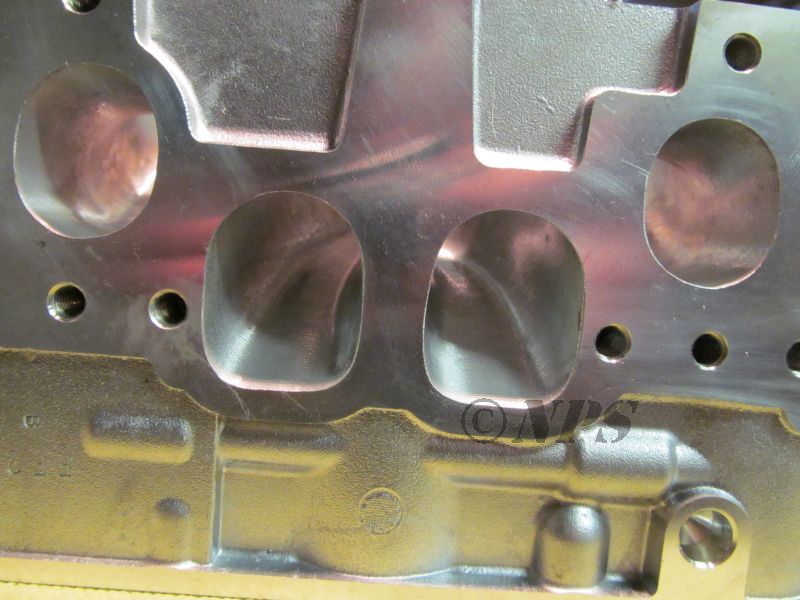

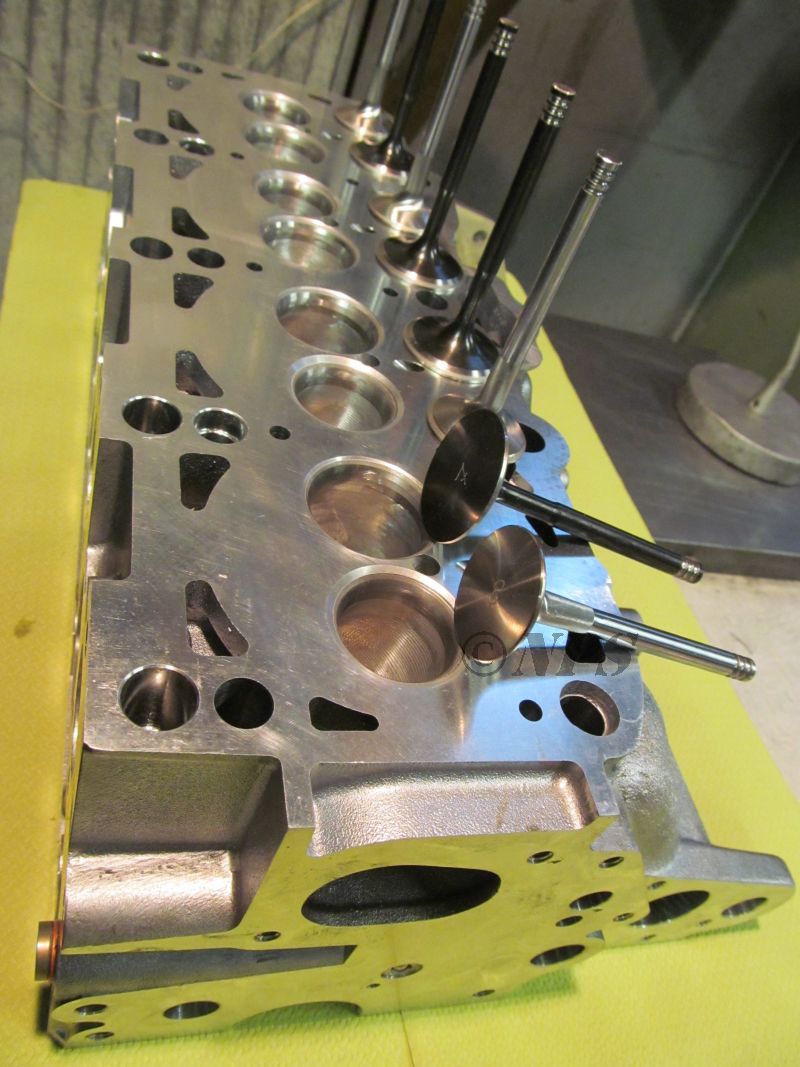

VW TDI PD 8v CNC:

We have CNC port profile for VW TDI 1.9 8v PD head.
Head is fully CNC machined and hand finished for superior performance.
Head in picture is AMC head, but master ports were made to OEM head.
Valves can be custom made for needed size, but CNC profiles work perfectly with stock valves as well.
Prices, "Stages" and more details in web hop.

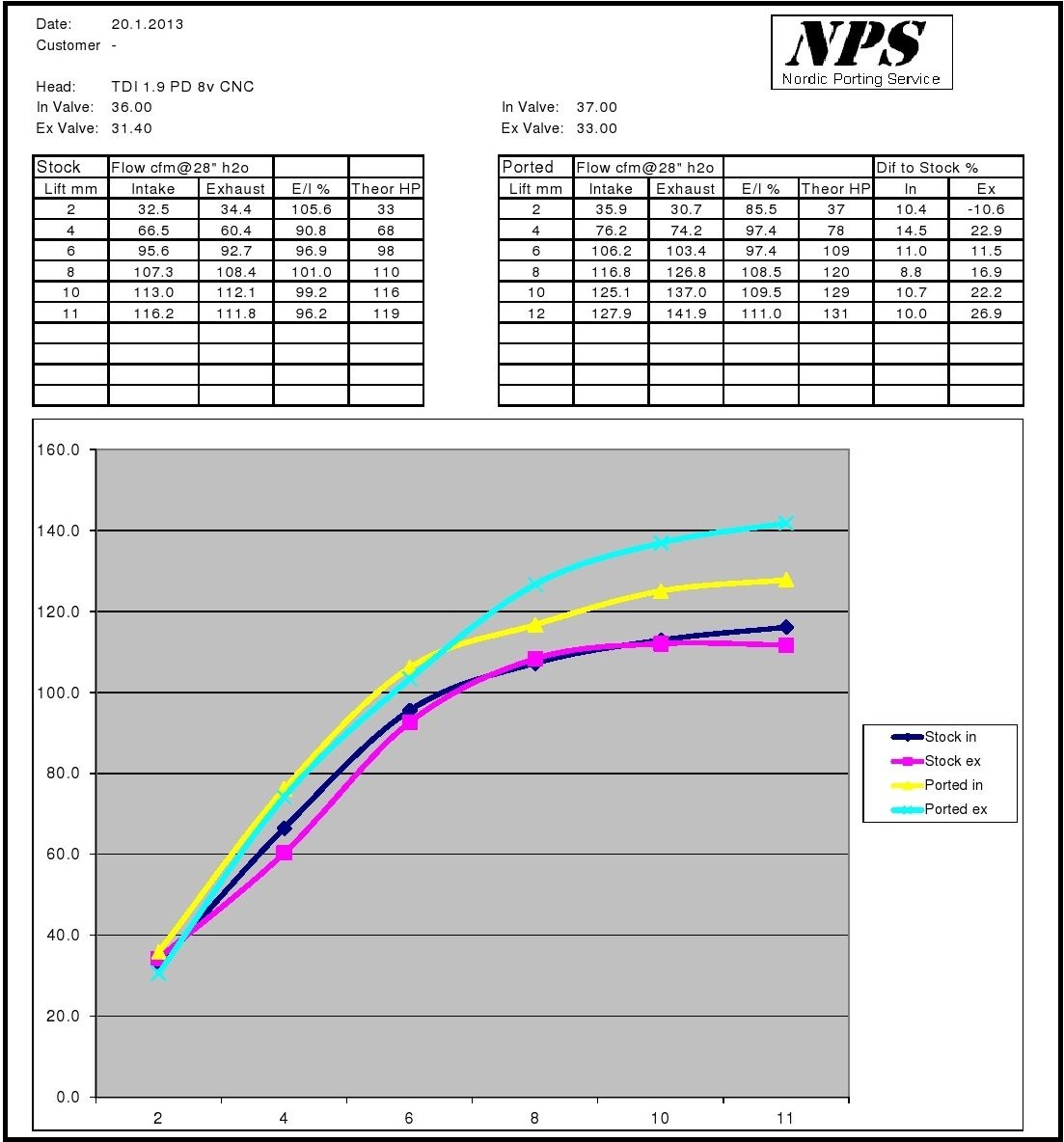

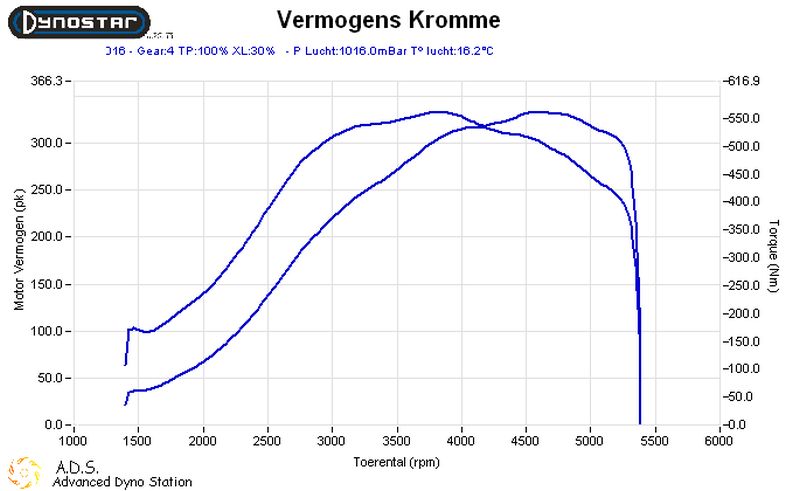

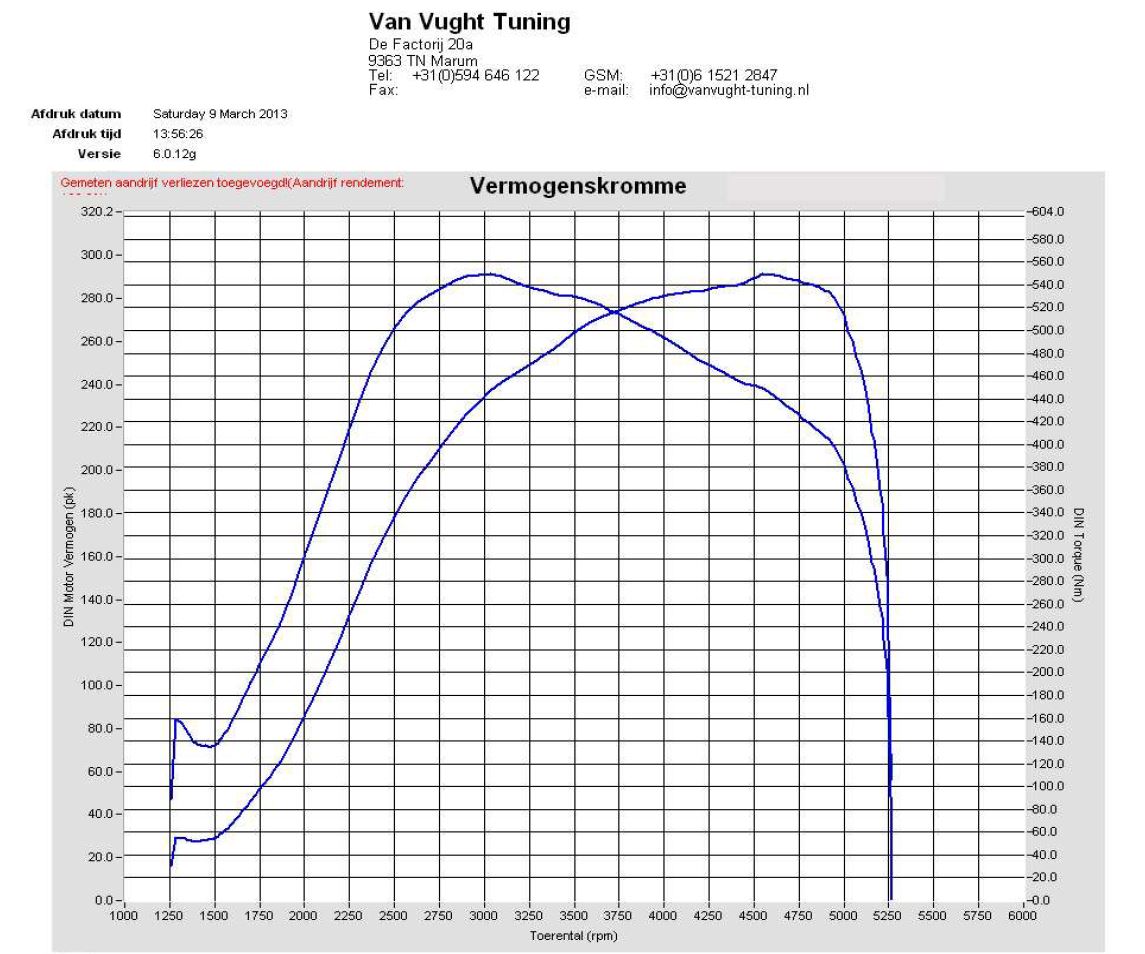

VW 1.9 TDI PD CNC VW 1.9 TDI PD CNC VW 1.9 TDI PD CNC VW 1.9 TDI PD CNC VW 1.9 TDI PD CNC Flow sheet VW 1.9 TDI PD CNC Stage-3 Dyno 333hp VW 1.9 TDI PD, CNC Stage-2 head, Our Stage-2 Camshaft, Van Vught Tuning custom remap 2.2bar

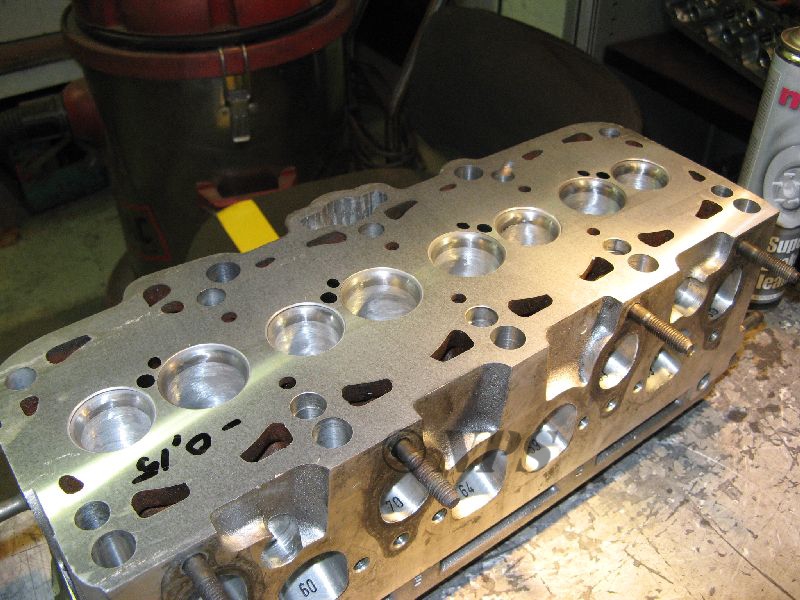

VW TDI VE:

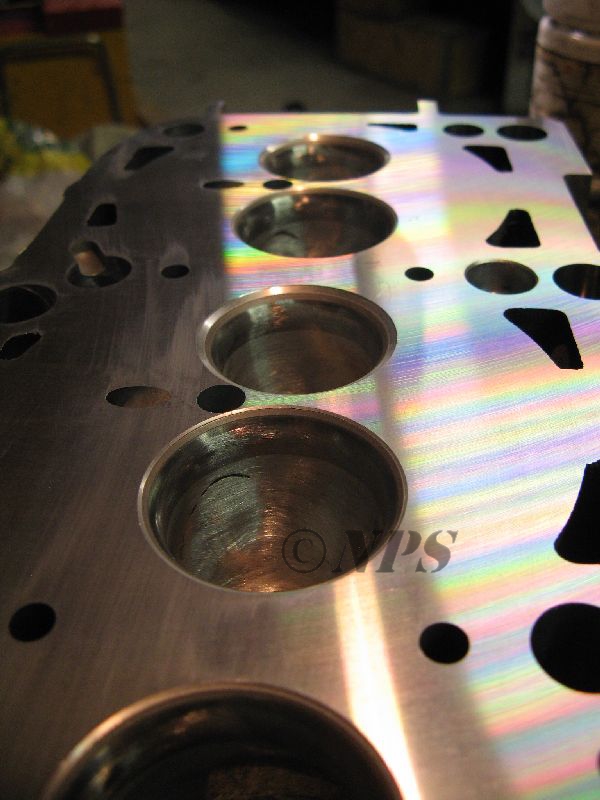

VW 1.9 TDI VE VW 1.9 TDI VE VW 1.9 TDI VE

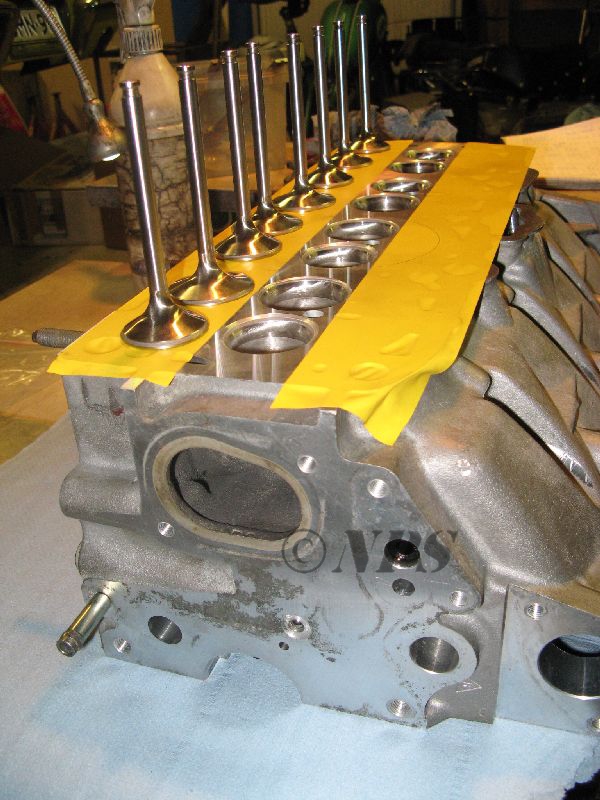

VW TDI PD hand ported:

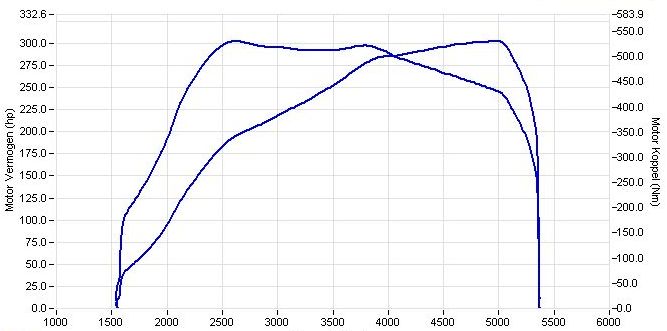

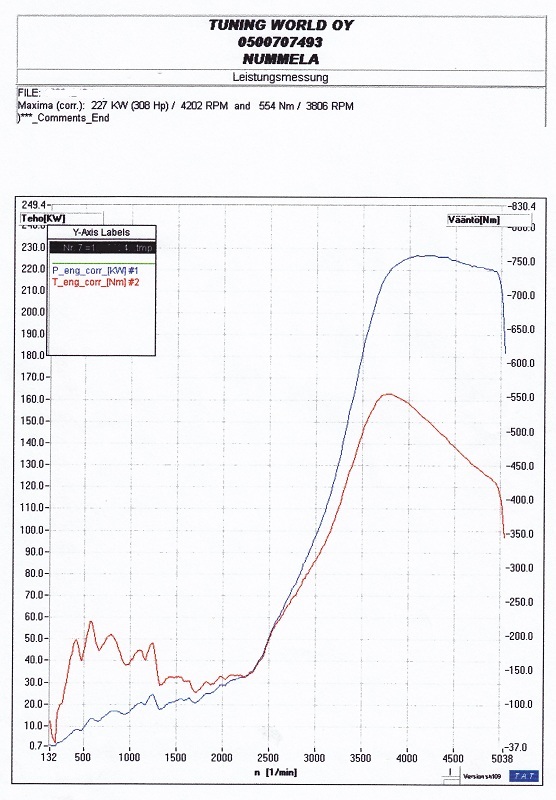

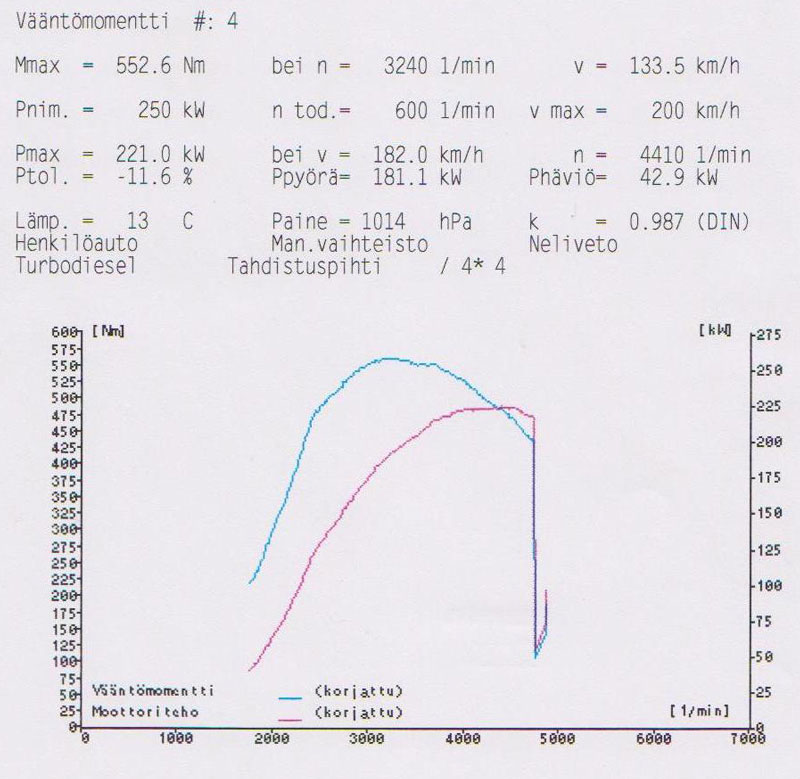

VW 1.9 TDI PD VW 1.9 TDI PD VW 1.9 TDI PD VW 1.9 TDI PD 302hp VW 1.9 TDI PD 300hp VW 1.9 TDI PD 308hp automatic VW Golf 1.9 TDI PD with our head and cam

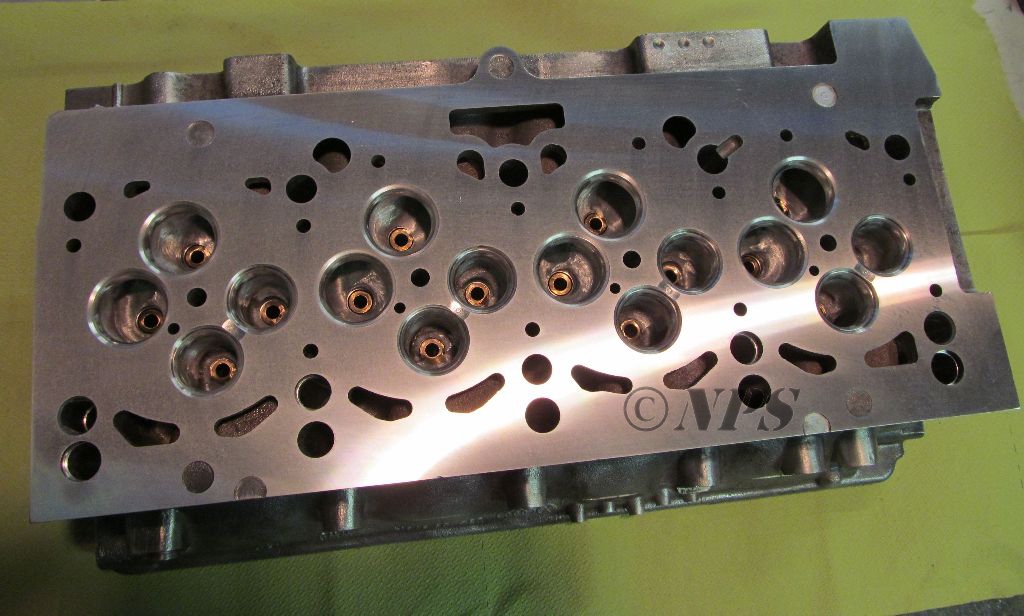

VW TDI 2.0 PD:

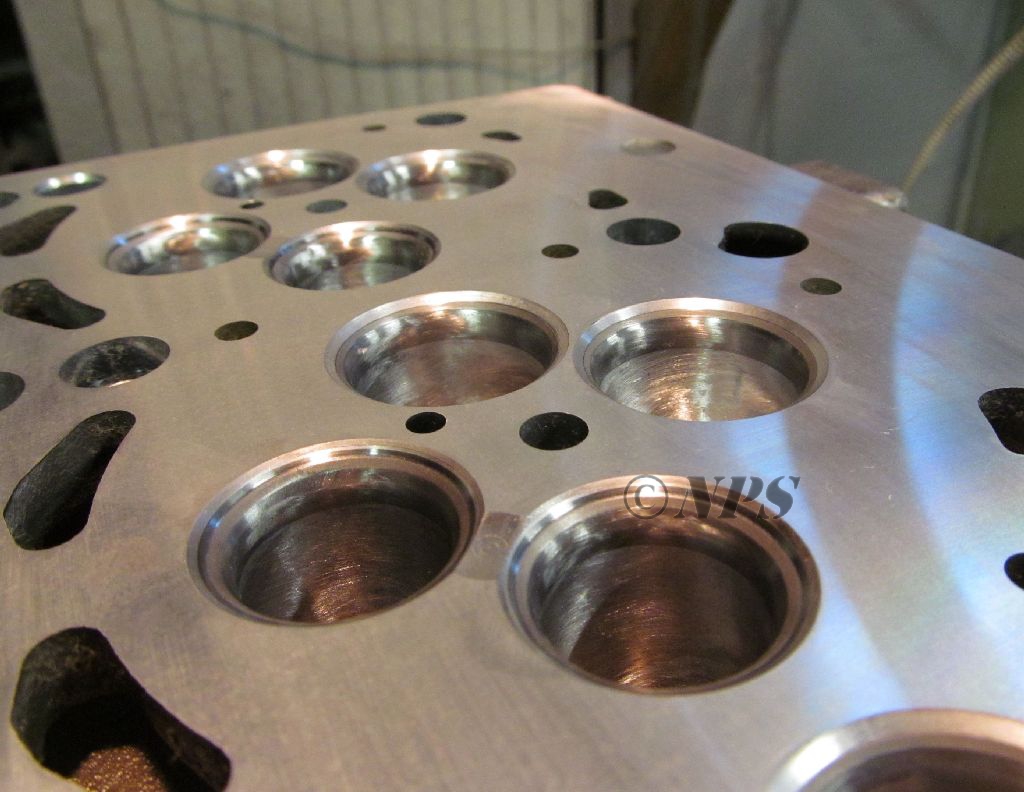

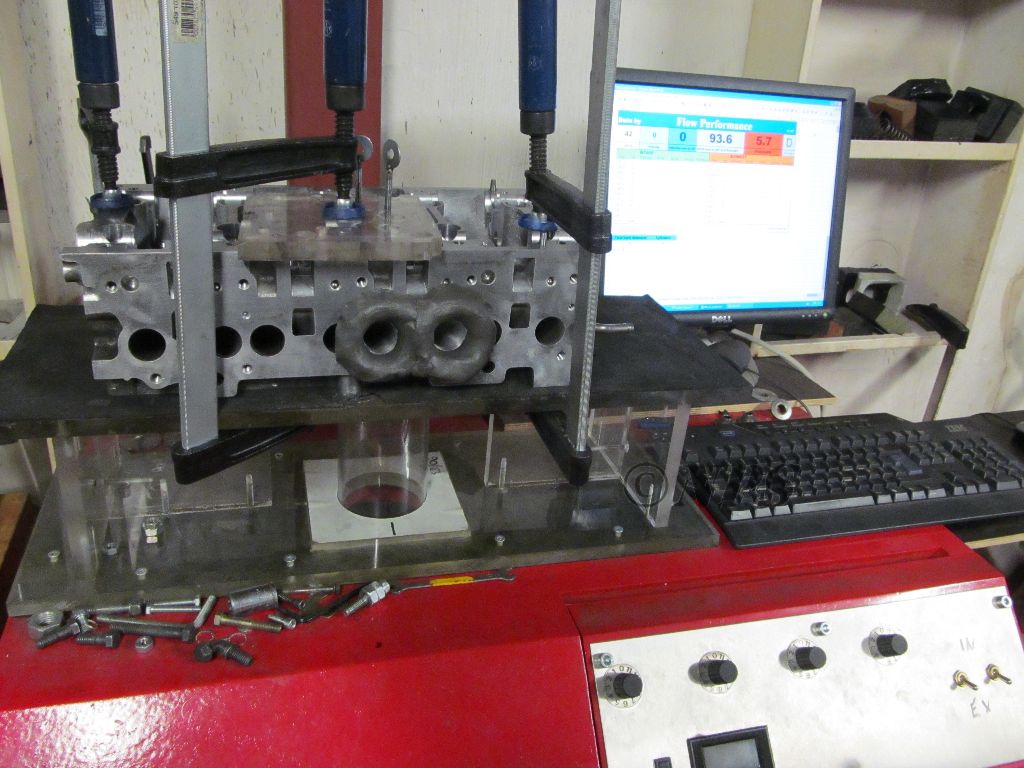

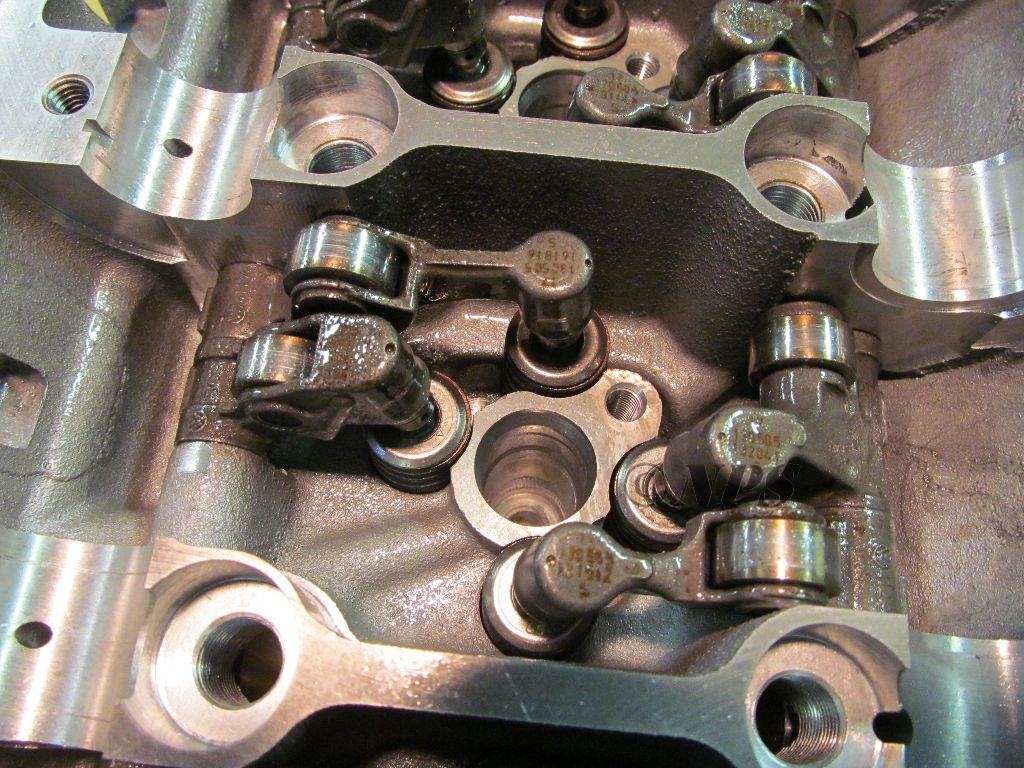

VW 2.0 TDI BKD VW 2.0 TDI BKD VW 2.0 TDI BKD in flow bench VW 1.9 TDI BKD valvetrain

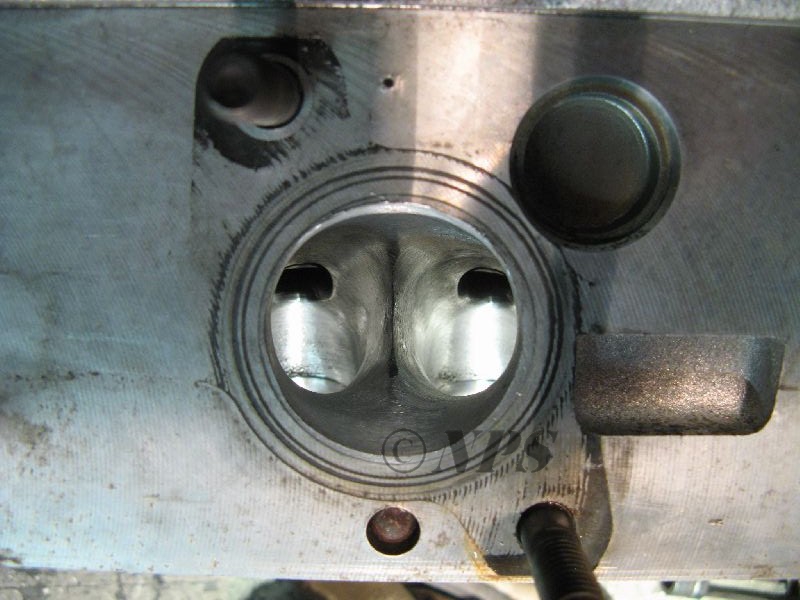

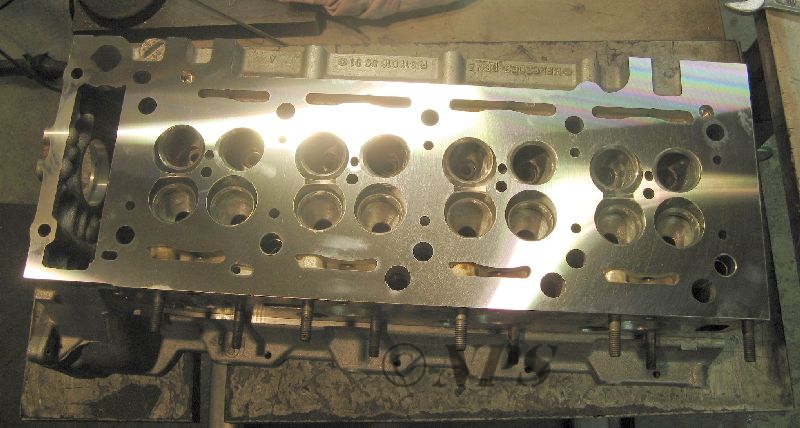

MB 200CDI:

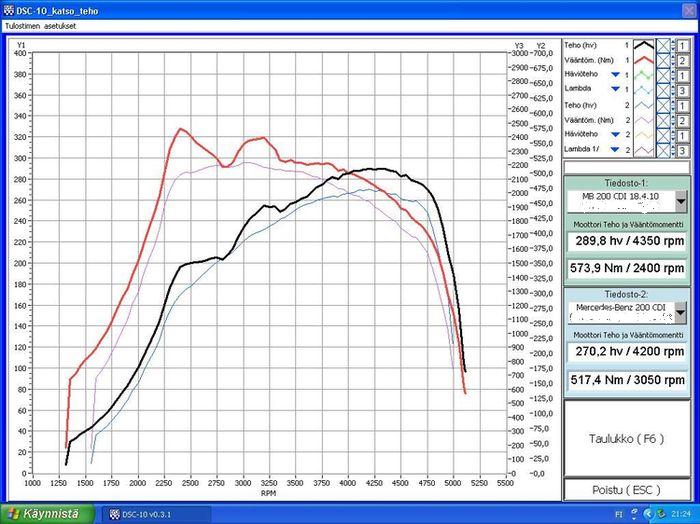

MB 200cdi MB 200cdi MB 200cdi 289hp

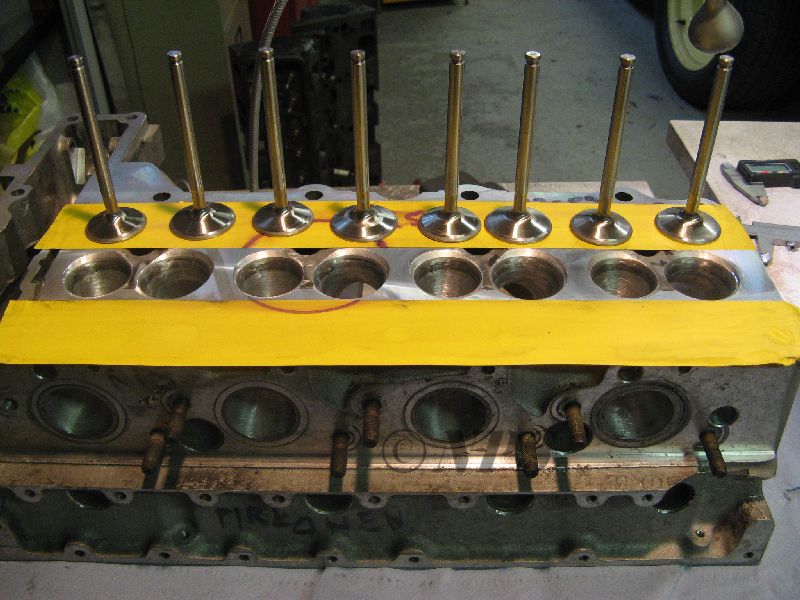

MB TD:

MB TD Vito

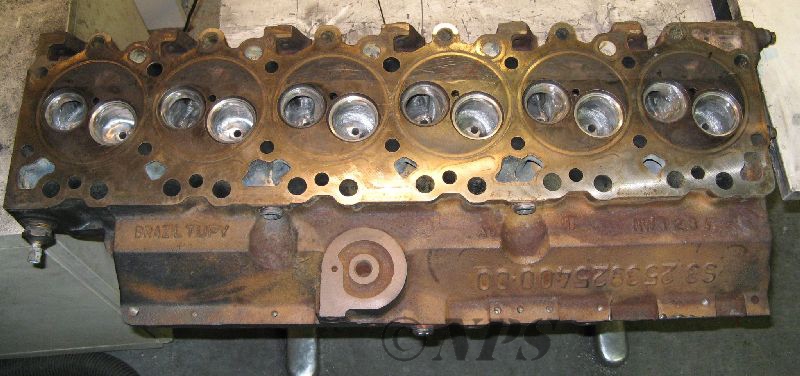

Cummins:

Cummins
